LRM HZV52

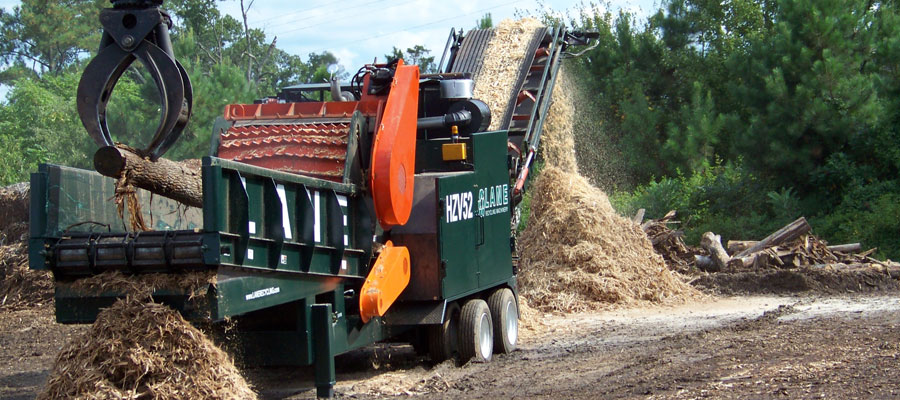

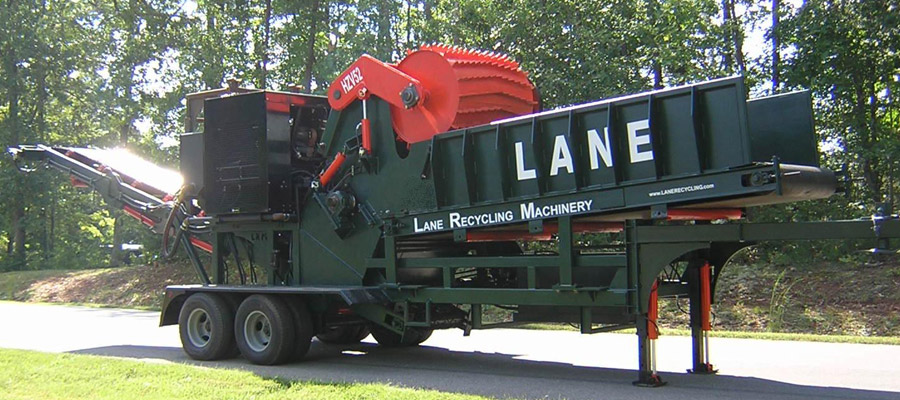

HZV52 is THE ANSWER for all your small to medium sized grinding applications. From slab wood at the sawmill to branches and limbs from storm damage or site clearing (<32,000 lbs) horizontal grinder agile enough to fit into most any job site. Capable of up to 18” diameter material, brush and sheared stumps; the HZV52 primary grind is amazing. With the ability to change from fixed to swing hammers in less than 45 minutes, the HZV52 produces an unmatched reground material. The HZV52 is designed for durability, ease of operation, low maintenance, and maximum productivity. With the ability to produce up to 200 cubic yards of product per hour consuming only 12- 14 gallons of fuel per hour, all of this adds up to the horizontal grinder for your needs while keeping an eye on your bottom line.

FEATURES - 19KPTO TRANSFLUID Coupler - STANDARD
Our ultimate horizontal grinder drive line utilizes the TRANSFLUID fluid coupler. No clutch plates. No wear parts. In the event the hammermill jams or is stopped, the KPTO fluid coupler immediately and automatically shuts down protecting the hammermill and the drive belt. Once the hammermill is cleared, simply reset the KPTO and resume grinding. No parts to replace! No torque limiter to rebuild or replace. No downtime or parts expense.

Engine
• 300hp Caterpillar, Deere or Cummins Engine - STANDARD

• 425hp Deere, 440hp Caterpillar and 400hp Cummins Engine Package - OPTIONAL

Fluid Coupler
• 19KPTO TRANSFLUID Fluid Coupler - STANDARD

Hydraulics
• Sauer Danfoss PLUS One +1 Management System - STANDARD

Infeed Conveyor
• Infeed Wheel and Infeed Conveyor AUTOMATICALLY adjust the infeed rate based on hammermill load. - STANDARD

• 53” wide x 16’ long Infeed Conveyor

• 44” diameter Hydraulically Driven Infeed Wheel

• WDH110 Drag Chain for Infeed Conveyor

Hammermill

• 52” width x 28” diameter

• (19) 1” Millplates with 1-1/2” AR Mill Rods

• 18” Fixed Hammers

• Custom BearClaw Hammer

• Tips by Kennametal

• 6 1/2” Diameter Mill Shaft

Elevator
• 23’ Elevator

Now available with Track Drives
